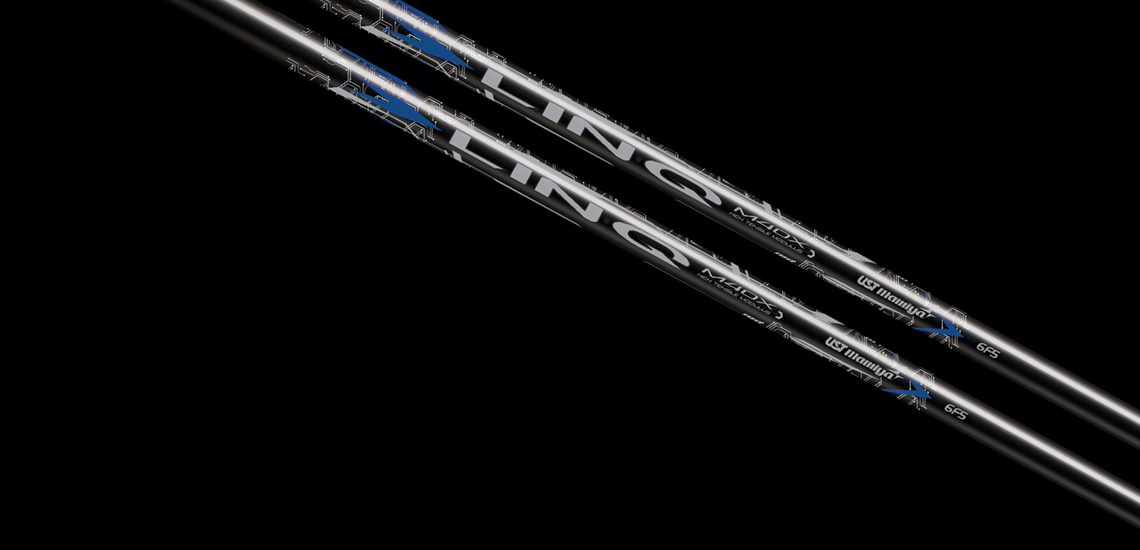

LIN-Q M40X Blue is designed for the golfer seeking a mid-launch and low spin.
UST Mamiya engineers have created a new, higher performance LIN-Q shafts with increased strength and phenomenal feel. Incorporating M40X into the tip area provides significantly improved lateral stability to the shaft during the golf swing, thereby delivering increased energy to the golf ball at impact.
M40X HIGH TENSILE MODULUS
Revolutionary Material | Innovative Design
M40X represents a major advance in carbon fiber technology. TORAY Industries pushed both fiber strength and tensile modulus to the extreme and applied technology to improve fiber orientation by closely controlling the graphite crystal structure in a nano order. The result is a revolutionary material that offers a 30% improvement in tensile strength over conventional carbon fiber.
M40X eliminates the “boardy” feel through the use of proprietary nano technology and nanoalloy used in the prepreg matrix resin. This novel combination significantly improves shaft feel and performance.
LIN-Q M40X features our exclusive Q-Ply combined with the revolutionary M40X Material.
Shaft Specifications
Shaft
Flex
Weight
Torque
Launch
Tip OD
Tip Parallel
Length
LIN-Q M40X Blue 6F3
R
64g
4.9°
Mid
0.335″
3.0″
46″
LIN-Q M40X Blue 6F4
S
66g
4.8°
Mid
0.335″
3.0″
46″
LIN-Q M40X Blue 6F5
X
67g
4.7°
Mid
0.335″
3.0″
46″
LIN-Q M40X Blue 7F4
S
74g
4.1°
Mid
0.335″
3.0″
46″
LIN-Q M40X Blue 7F5
X
76g
4.1°
Mid
0.335″
3.0″
46″
Swing Speed Recommendations
Flex
Driver Swing Speed (mph)
Driver carry (yards)
R
80-95
200-240
S
90 – 105
225 – 260
X
> 105
> 260
Tip Trimming Recommendations
Tipping Instructions
Driver
3-wood
5-wood
7-wood
LIN-Q M40X Blue
0.0″
0.5″
1.0″
1.5″
